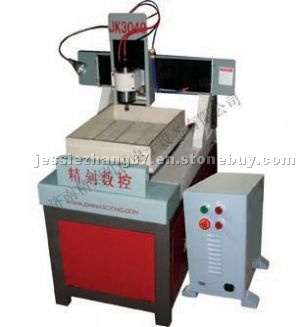

CNC Stone Engraving Machine JK-3040

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1433764

• Place of Origin:

  China
• Machine features:
  1. Particular style, competent for elaborate engraving and cutting on stone.
  2. 1.2KW water-cooled spindle motor.
  3. The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail.
  4. Furnish with DSP control system if you need.
  5. Be compatible with type 3, Artcut, Artcam software.
  6.Memory to ensure the processing point when the blade is broken or postpone stitution. Specific saving mode of different points.
  Technical parameter:
  modle JK-3040
  Work dimensions 300×400mm
  Body dimensions 300×400×600mm
  Z-axis working area 45 or 60mm
  Max feeding height 100mm or bigger
  Cut thickness of material ≤30mm
  Max.speed 6000mm/min
  Working speed 0-4000mm/min
  Mechanical precision 0.01mm
  Software type3,Artcut,Artcam software
  Power 1500W
  Working voltage AC 220V/50Hz
  Drive type stepper motor
  Spindle 1200W variable speed,water-cooled
  Spindle speed 0-24,000rpm
  Blade diameter 1-6mm
  Control system NCSTUDIO or DSP
  Command HPGL.G code,u00,mmg,plt
