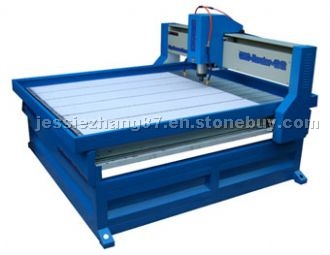

CNC Stone Engraving Machine JK-1212

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1464908

• Place of Origin:

  China
• Machine features:

  Particular style, competent for elaborate engraving and cutting.
  2.2KW water-cooled spindle motor.
  The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail.
  Be compatible with type 3, Artcut, Artcam software.
  Memory to ensure the processing point when the blade is broken or postpone stitution. Specific saving mode of different points.

  Technical parameter:

  MODLE
  JK-1212

  Machine body
  whole cast iron or cast aluminum

  Work dimensions
  1200 x 1200 x 80mm

  Body dimensions
  1500 x 1550 x 1500mm

  Z-axis working area
  80mm

  Max. Feeding height
  120mm or bigger

  Cut thickness of material
  40mm

  Max. Speed
  6000mm/min

  Working speed
  0 - 4000mm/min

  Mechanical precision
  0.01mm

  Software
  Artcam, Artcut, Type3 software

  Max. Power consumption
  1800W

  Power source
  AC 220/50Hz

  Driver type
  stepper motor

  Spindle
  2.2KWvariable speed, water-cooled

  Spindle speed
  0 - 24,000rpm

  Blade diameter
  1 - 6mm

  Control system
  NCSTUDIO or DSP

  Command
  HPGL,G code, u00, mmg, plt
